1,000 Cubic Meters: Capturing Every Breath of Yichang’s Food Waste
The first time I saw it inflate was early one morning.
The membrane rose and fell gently in the breeze from the Yangtze River, like a quiet breath. At that moment, the main process line of the Yichang Food Waste Collection, Transfer, and Resource Recovery Project truly came together.
Where a City’s Leftovers Become Energy
Once food waste arrives at the plant, it goes through contaminant removal, crushing, slurry preparation, and oil recovery before entering the anaerobic digesters. Organic matter becomes biogas, which is then used to generate electricity and heat—a familiar story.
Yet few people notice the breathing space between production and use.
Biogas production fluctuates with feedstock, temperature, and microbial activity. Output rises and falls throughout the day, while downstream generators need a steady gas flow and pressure. Production and consumption rarely move in step.
That missing breathing space is provided by this 1,000 m³ gas holder.
At peak production, it takes in the surplus, helping prevent pressure buildup and frequent safety valve activation. When energy demand falls, it holds the gas, saving it for when it is needed most. As generators increase their load, it keeps the supply flowing, helping stabilize pressure and flow. During abnormal operating conditions, its buffering capacity can also provide time to respond, allowing a valuable window for isolation, corrective action, and controlled gas disposal.
Installing a gas holder helps a system run. Installing it properly helps the system run reliably.
Expertise Lies in What You Cannot See
One thousand cubic meters may not look particularly imposing, but three critical stages cannot be bypassed.
The first is the foundation. The levelness of the ring beam and the positioning accuracy of embedded components establish the reference for everything that follows. A small compromise here can demand far greater effort to correct later. We verified this stage through a documented foundation acceptance survey.
The second is membrane welding. Every weld seam is numbered and traceable to its welder, with records of the temperature and wind speed on the day of welding. Test channels between the double weld seams allow air-pressure testing, so acceptance rests on measured results. Every leak identified is repaired and retested. Nothing is left at “it should be fine.”
The third carries the greatest risk and leaves the least room for error: inert gas purging before biogas admission. Allowing air and biogas to mix can have severe consequences. We purged the system with nitrogen according to an established procedure, taking samples at multiple points and repeating measurements. Biogas was not admitted until oxygen levels met the acceptance criteria. The same discipline applied to gas-tightness testing: pressure was increased in stages, held under observation, and approved only when the pressure drop met the specified limits.
In practice, expertise means one thing: every step is backed by evidence.
The People Who Made It Happen
Yichang sits beside the Yangtze, where sudden showers can arrive with little warning. Membrane installation required a calm, dry weather window, so we completed pipe prefabrication, support fabrication and installation, and instrument calibration in advance. Once the weather cleared, crews and equipment moved onto the work area together, making the most of those few available hours.
Eight specialist workstreams were coordinated within one integrated project schedule. Responsibilities at each interface were defined in advance, and work handovers followed checklists with signed confirmation. Self-inspections, cross-checks, and specialist inspections formed successive layers of quality control. The owner and supervising engineer were invited to witness key milestones on site.
One evening stands out. A reserved opening did not match the drawing. The technical leads for process, piping, instrumentation, and structural work gathered around an unfolded drawing on the ground and agreed on a solution there and then. A design change notice was issued that night, and work continued as scheduled the next morning.
On a construction site, expertise is reflected both in the drawings and in the speed and coordination with which people resolve the unexpected.
Today

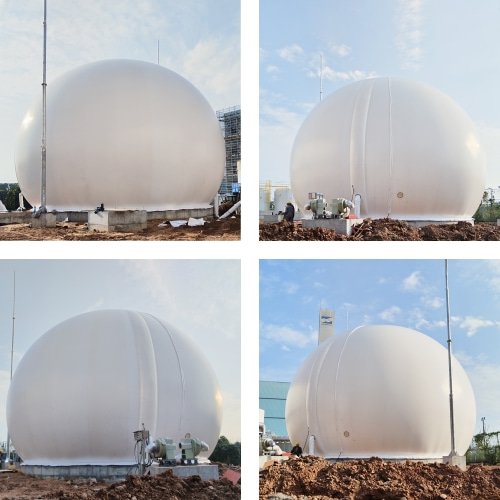

The gas holder now stands steadily in Yichang.
It captures every breath of the city’s food waste, smoothing fluctuations into a stable supply and helping turn organic matter into electricity and heat.
A thousand cubic meters may be modest in size, but it provides reassurance for an entire system. It is our practical contribution to this city on the Yangtze.
